  • Toughpower GF3 850W Gold - TT Premium Edition
Toughpower GF3 850W Gold - TT Premium Edition Toughpower GF3 850W Gold - TT Premium Edition Toughpower GF3 850W Gold - TT Premium Edition Toughpower GF3 850W Gold - TT Premium Edition Toughpower GF3 850W Gold - TT Premium Edition Toughpower GF3 850W Gold - TT Premium Edition

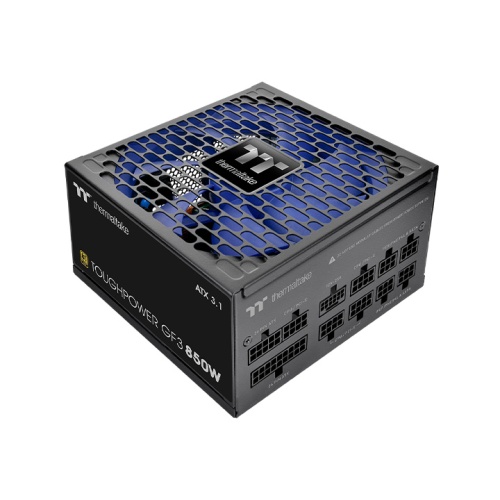

Toughpower GF3 850W Gold - TT Premium Edition

Toughpower GF3 850W Gold - TT Premium Edition

Out of stock
P/N
PS-TPD-0850FNFAGU-4
USD$159,99
80 PLUS Gold certified fully modular power supply with PCIe Gen5.1 native connector, high amperage +12V rail, advanced DC-DC & LLC design, Japanese capacitors, and industry-grade protections optimized for next-gen GPUs and ATX 3.1 systems.
en-GF1_snow_750
Full Modular Layout with Optimized Airflow

Next-Gen Ready with ATX 3.1 & PCIe Gen5.1

Built to meet Intel ATX 3.1 power supply requirements and equipped with a native 12+4pin PCIe Gen5.1 modular connector to support next-generation GPUs.

PCIe 12V-2x6 connector illustration

Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

Premium Japanese 105°C Capacitors

All main capacitors are high-quality Japanese-made for long-lasting reliability and stability under heavy loads.

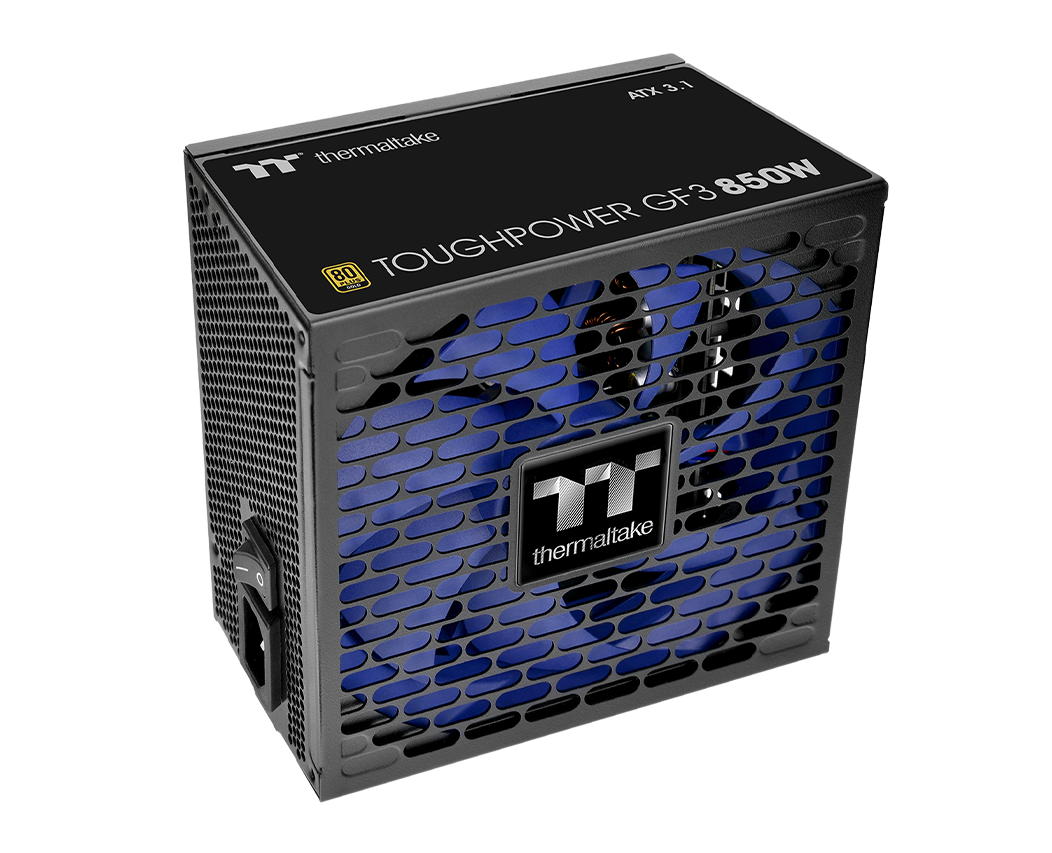

Next-Gen Ready Power

High Amperage Single +12V Rail & DC-DC + LLC Design

Provides stable and powerful +12V output with precise voltage regulation for high-performance systems.

AC INPUT

Input Voltage: 100-240V~
Input Current: 12.0A Max.
Frequency: 47Hz - 63Hz

DC OUTPUT +3.3V +5V +12V -12V +5VSB
Max Output Current 20A 20A 70.5A 0.3A 2.5A
Max Output Power 110W 846W 3.6W 12.5W
Total Power 850W

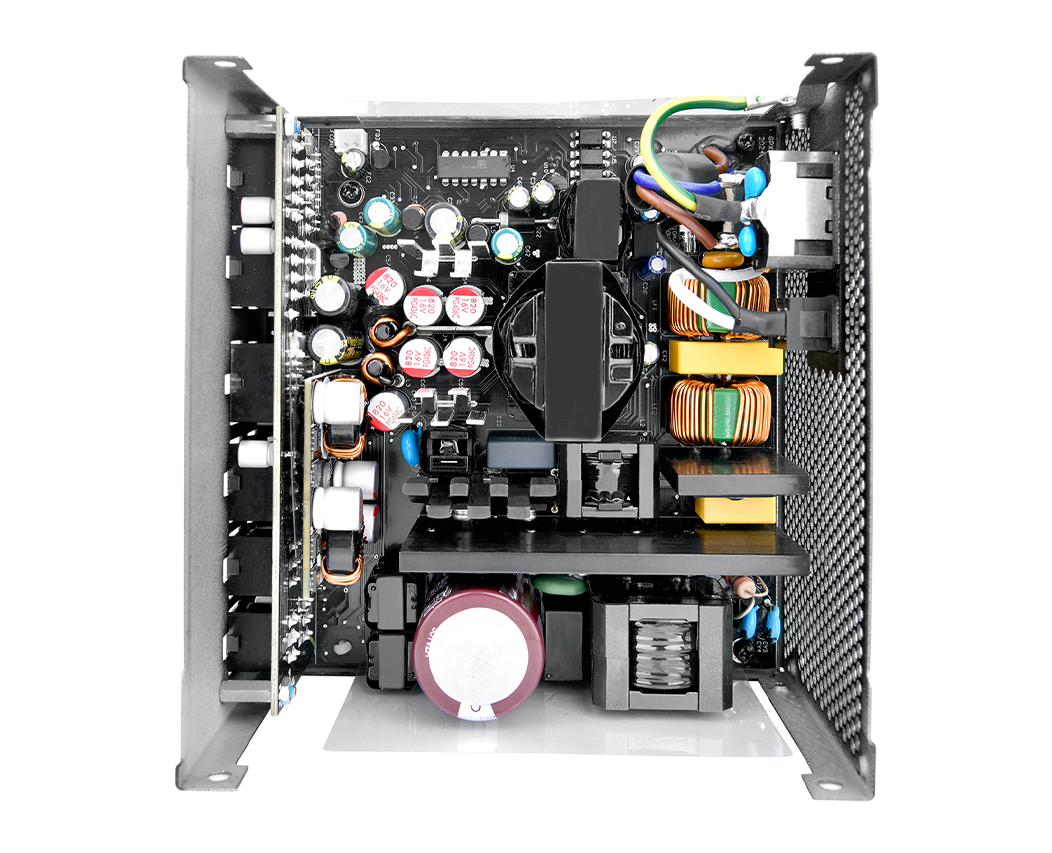

Minimal Noise, Maximum Clarity

Fully Modular with Flat Black Cables

High efficiency Zero Cable platform with low-profile flat black cables improves airflow and cable management.

Space-Saving Etched Cable Design
Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(24Pin)		 X 1 Main Power (20+4Pin) cable illustration X 1 550mm
ATX 12V
(4+4Pin)		 X 2 ATX 12V (4+4/8Pin) cable illustration X 2 700mm
PCIe
(6+2Pin)		 X 4 PCIe (6+2Pin) X 2 600mm+150mm
PCIe
(12+4Pin)
600W		 X 1 ATX 12V (12+4Pin) X 1 600mm
SATA
(5Pin)		 X 6 SATA(5Pin) X 2 450mm+150mm+150mm
Peripheral
(4Pin)		 X 4 Peripheral(4Pin) X 1 450mm+150mm+150mm+150mm

Industry-Grade Safety Protections

Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation.

  • OCP

    Over Current Protection

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

  • OTP

    Over Temperature Protection

80 PLUS Gold Certified

Delivers up to 90% power conversion efficiency under real-world load conditions, reducing wasted energy and heat.

80 PLUS Platinum Certified

Eco & Power Standards Support

Supports Intel Deep Power Down C6/C7 states, ErP ready, and complies with Energy Star, RoHS, and WEEE standards.

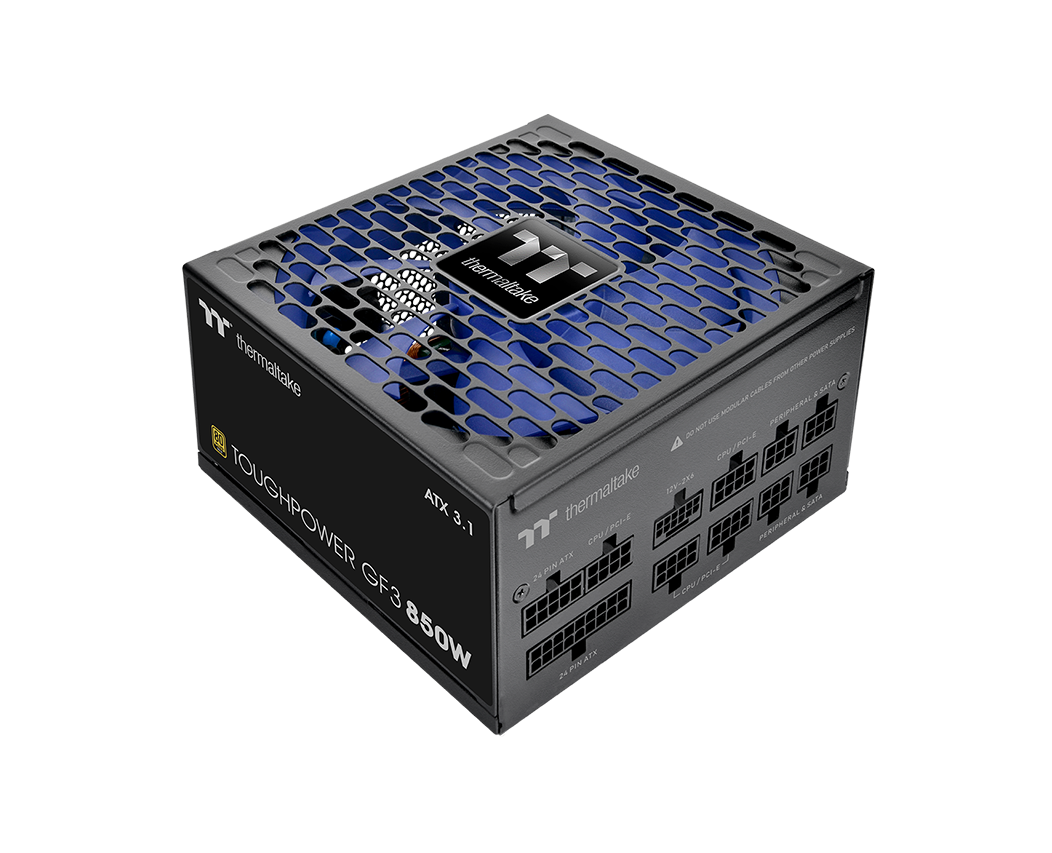

Full Modular Layout with Optimized Airflow
More Information
P/N PS-TPD-0850FNFAGU-4
watts 850W
Formato ATX
Max. Output Capacity 850W
Color Black
Dimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-150 msec
Hold Up Time > 17msec at 80% load
Input Current 12.0A Max.
Input Frequency Range 47Hz - 63Hz
Input Voltage 100-240V~
Operating Temperature 0°C to + 40°C
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20°C to + 70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 135mm FDB fan
Efficiency Meet 80 PLUS® Gold at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval FCC/ICES/CB/cTUVus
PCI-E 6+2pin 4
PCIe 12+4pin 2
