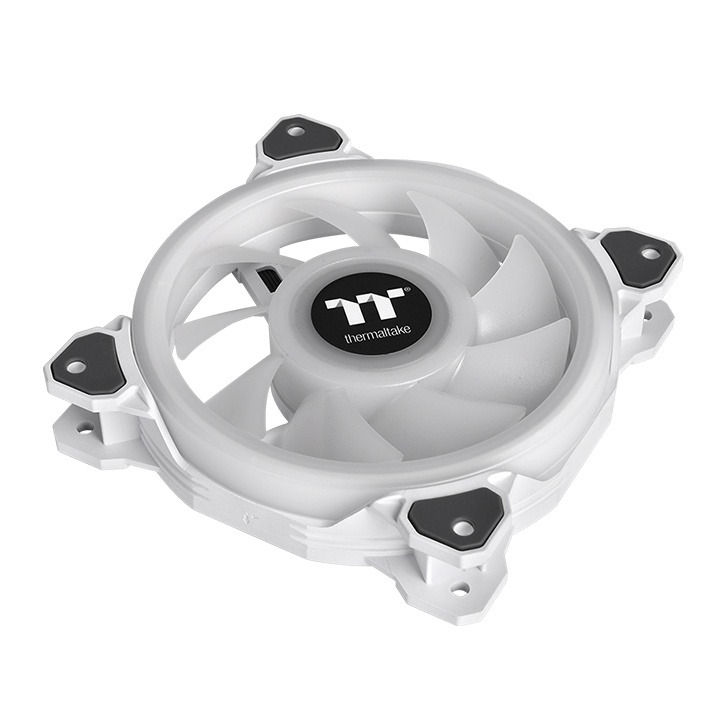

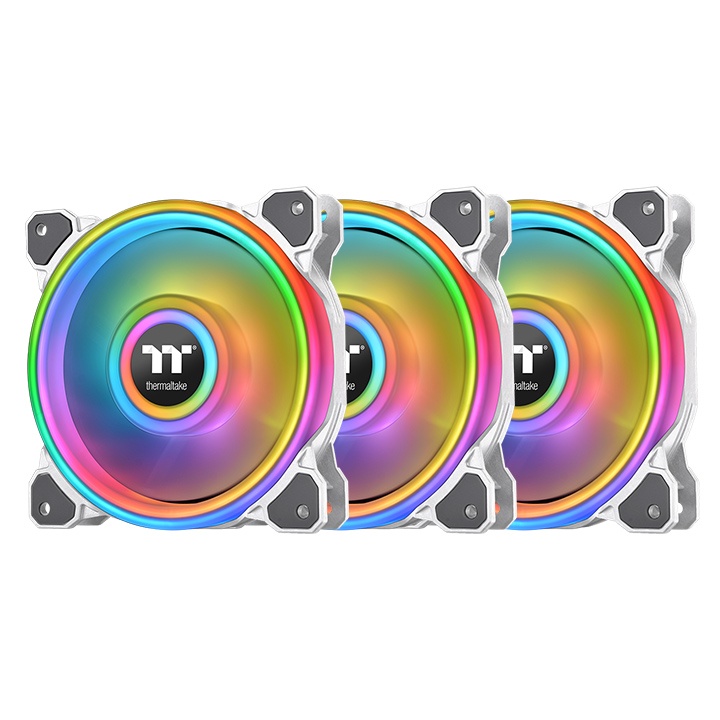

Riing Quad 14 RGB Radiator Fan TT Premium Edition 3 Fan Pack - White (Controller included)
Riing Quad Series
The Riing Quad radiator fan is
unique and in its class of its
own, combining outstanding reliability, silent operation, unrivaled cooling,
and most importantly the fan
is engineered with 54 LEDs, split between 4 separate ring’s creating vibrant
and gorgeous lighting effects
when set through our NeonMaker light editing software.
Watch Video

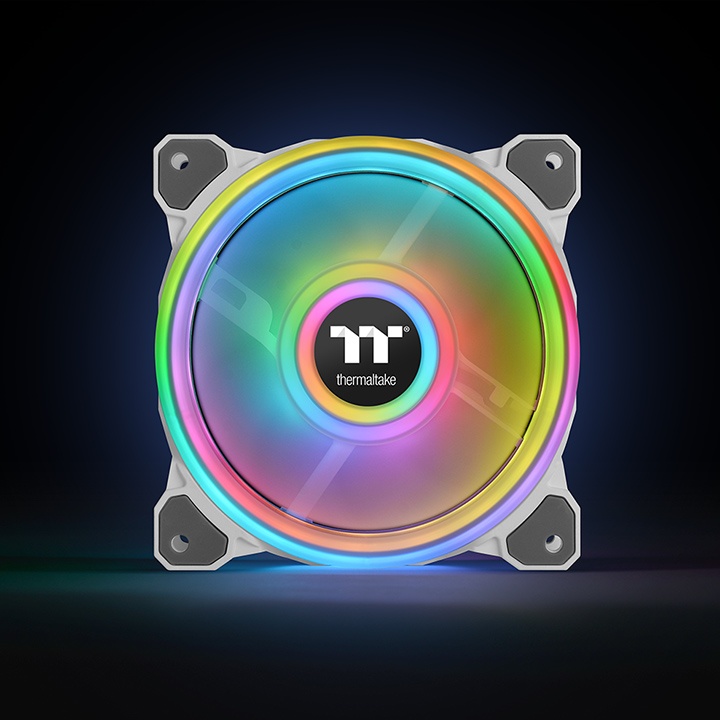

4 LIGHT RINGS AT THE FRONT 54 LEDs IN TOTAL
1st Ring 18LEDs
2nd Ring 18LEDs
3rd Ring 9LEDs
4th Ring 9LEDs

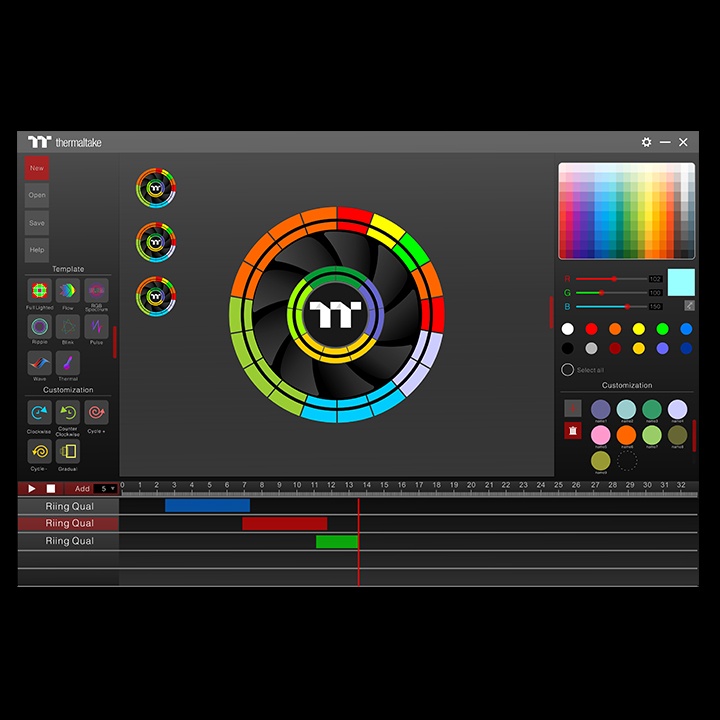

NeonMaker Light Editing Software
NeonMaker Microsite Download NeonMaker
The NeonMaker is a new and innovative approach to
adjusting the RGB
lighting on the Riing Quad fans, allowing users to customize lighting profiles and
orchestrate their own
light shows. Personalize the Riing Quad fans with NeonMaker!
*NeonMaker only supports the Riing Quad Series fans.
Immerse yourself with 100’s of Downloadable
Profiles by Creators from
around
the world.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing
substance, which lowers operation
noise while improving thermal efficiency. The seal cap prevents lubricant leakage
and extends the lifespan of
the unit.
Extraordinary Cooling Performance
A specially designed fan blade allows even stronger
flow, the Riing Quad fans
ensure the cooling performance more efficient under intense operation.
Riing Quad 14 - 60.17 cfm/ 500-1400rpm /1.71 mm-H2O
Riing Quad 12 - 40.9 cfm / 500-1500rpm / 1.4 mm-H2O
Anti-Vibration Mounting System
The In-mold injection anti-vibration rubber pads allow the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.
TT RGB PLUS Software
2.0 - New version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.
2.0 DOWNLOAD NOW
2.0 USER MANUAL
1.0 DOWNLOAD NOW
1.0
LEARN MORE
NeonMaker
The NeonMaker is a new and innovative approach to adjusting the RGB
lighting on the some of our products, allowing users
to customize lighting profiles and orchestrate their own light shows.
Personalize Riing Quad Fans, Riing Trio Fans, Distro Case, Floe DX RGB AIO, and TOUGHRAM RGB with
NeonMaker!
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer Chroma ecosystem, Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling system and Razer gaming gear!
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to the Alexa-enabled devices.
P/N | CL-F101-PL14SW-A |
---|---|
Fan Dimension | 140 x 140 x 25 mm |
Interface | USB 2.0 connectors (9 Pin) |
System compatibility | Windows 7 / 8 / 8.1 / 10 |
Fan Started Voltage | 9.0 V |
Fan Rated Voltage | 12 V & 5V |
Rated Current | 12V- 0.12 A , 5v – 0.9A (Fan*1) |
Power Input | 12V – 4.32 W . 5V – 13.5 W (Fan*3) |
Fan Speed | 500 ~ 1400 R.P.M |
Max. Air Pressure | 1.71 mm-H2O |
Max Air Flow | 60.17 CFM |
Noise | 26.1 dB-A |
Bearing Type | Hydraulic Bearing |
Life Expectation | 40,000 hrs,25℃ |
Weight | 238 g (Fan*1) |
